SI15V 3V3 I/FPM 8b A/C:B1/2-B:V1/4F

物料號 92000195

SI15V 3V3 I/FPM 8b A/C:B1/2-B:V1/4F

物料號 92000195

可以迅速提供給已注册用(yong)戶

描述

UHP diaphragm pressure regulators valves are available in various configurations and versions for usage in (cleanroom) utility and equipment manufacturing. The SS316L(VAR) pressure regulators have a polished internal surface finish, to minimize the forming of particles.

They are assembled and tested in a cleanroom environment.The valves are available with manual actuation for high and low pressures. The pressure regulators can be provided in 2/3/4/5 or 6 port configurations with the associated 1/4" face seal connections.

一般信息

cv-calculator

CV計算器

Specials

Info

Please contact us for more information about the special versions.

cv-calculator

CV計算器

Specials

Info

Please contact us for more information about the special versions.

技術規格

Article

92000195

Header [Brand]

UHP/HP High Flow Diaphragm Pressure Regulator

Manufacturer

Rotarex - Selfa

Manufacturer code

SI15V 3V3 I/FPM 8b A/C:B1/2-B:V1/4F

Material body

SS 316L

Material handle

Extruded plastic

Material seat

FPM

Material bonnet

Brass nickel plated

Material poppet

SS 316L

Material diaphragm

SS 304

Inlet pressure

25 bar

Outlet pressure

8 bar

He leak rate

Up to 10^-9 mbar · l/s

Flow rate

840 SLPM

Temperature range

-20 °C to 60 °C

Valve Actuation

Manually

Port configurations

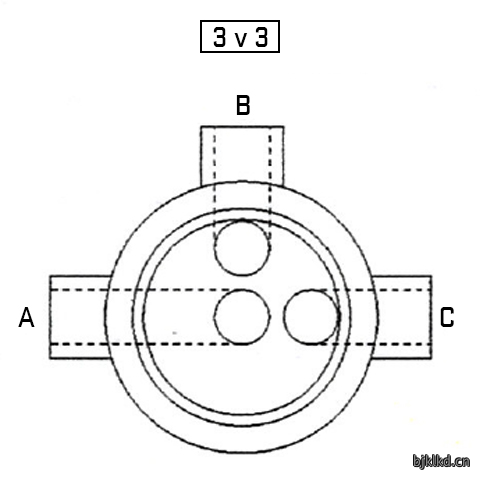

3 port v3 (see picture)

Connection type

Buttweld/Face seal female/Buttweld

Polishing

Electro polishing

Surface finish

<0,25µm Ra

增值税常規税率

21%

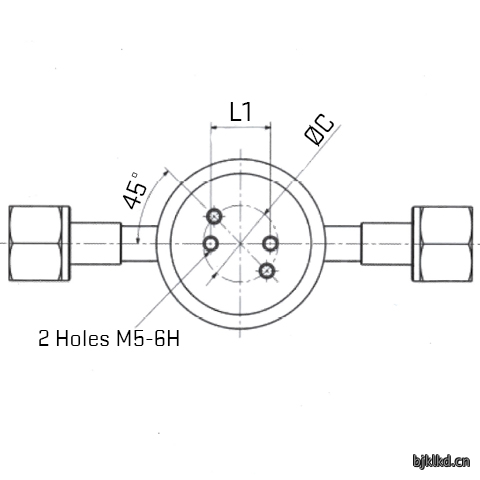

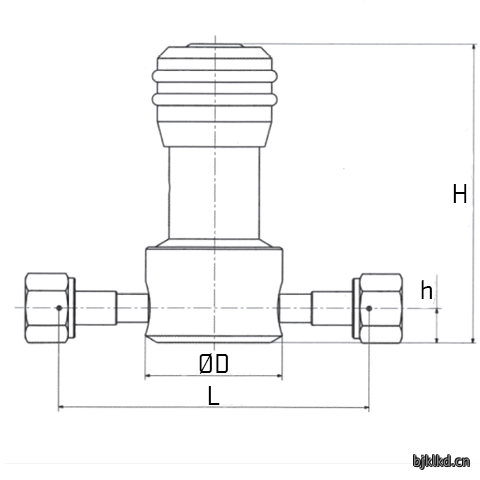

尺寸

Buttweld 1/2

Female face seal 1/4

Buttweld 1/2

28 mm

Ø D

62 mm

140 mm

22 mm

70 mm

137 mm

15,5 mm

備注

Remarks

Images shown can slightly deviate from the part supplied depending on the actual configuration/options.
