Diaphragm Press. Regulator SIR100S 2V1 I/K 7b A:V1/4M B:V1/4F
物料號 92000927
Diaphragm Press. Regulator SIR100S 2V1 I/K 7b A:V1/4M B:V1/4F
物料號 92000927
可(ke)以迅速提供給(gei)已注册用戶
UHP diaphragm pressure regulators valves are available in various configurations and versions for usage in (cleanroom) utility and equipment manufacturing. The SS316L(VAR) pressure regulators have a polished internal surface finish, to minimize the forming of particles.
They are assembled and tested in a cleanroom environment.The valves are available with manual actuation for high and low pressures. The pressure regulators can be provided in 2/3/4/5 or 6 port configurations with the associated 1/4" face seal connections.
cv-calculator
CV計算器
Specials
Info
Please contact us for more information about the special versions.
cv-calculator
CV計算器
Specials
Info
Please contact us for more information about the special versions.
Article
92000927
Header [Brand]
UHP/HP Diaphragm Pressure Regulator
Description
Diaphragm Press. Regulator SIR100S 2V1 I/K 7b A:V1/4M B:V1/4F
Manufacturer
Rotarex - Selfa
Manufacturer code
SIR100S 2V1 I/K 7b A:V1/4M B:V1/4F
Material body
SS 316L
Material handle
Extruded plastic
Material seat
PCTFE (Kel-F)
Material bonnet
Brass nickel plated
Material poppet
SS 316L
Material diaphragm
Hastelloy®
Inlet pressure
50 bar
Outlet pressure
7 bar
He leak rate
Up to 10-9 mbar · l/s
Flow coefficient
0,2 Cv
Temperature range
-20 °C to 65 °C
Valve Actuation
Manually

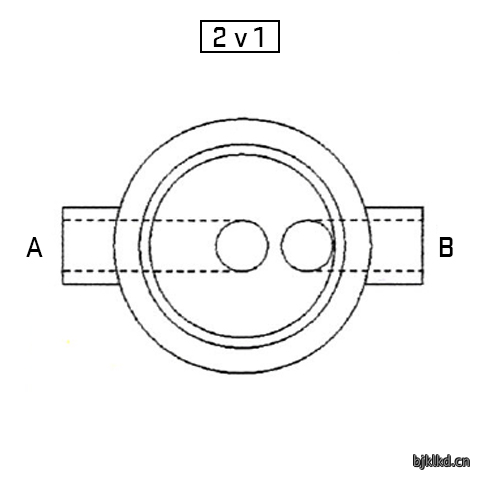

Port configurations
2 ports in line
Connection type
Face seal male/Face seal female
Polishing
Mechanical polishing
Surface finish
<0,4µm Ra
增值税常規税率
21%

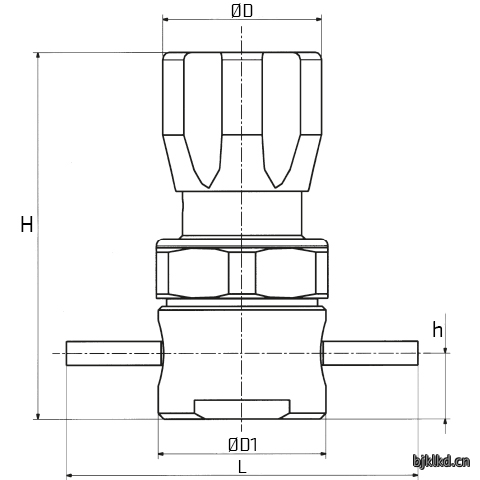

C
Male face seal 1/4
C1
Female face seal 1/4
Ø D
44,5 mm
Ø D1
45 mm
L
94 mm

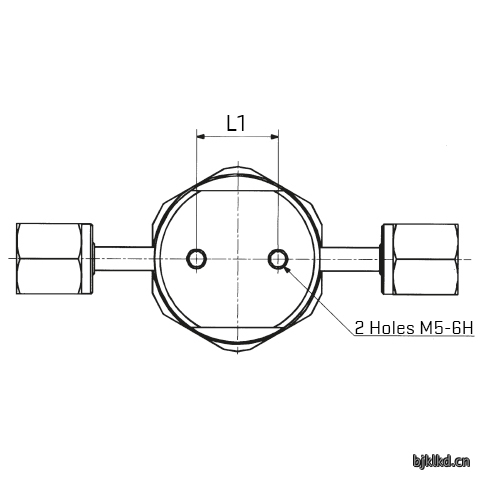

L1
22,3 mm
L2
47 mm
H
99 mm
h
17,5 mm
Remarks
Images shown can slightly deviate from the part supplied depending on the actual configuration/options.
