SIR100S 2V1 I/K 7b A/B:B3/8

物料號 92000928

SIR100S 2V1 I/K 7b A/B:B3/8

物料號 92000928

可以迅速提供給(gei)已注册用戶(hu)

描述

UHP diaphragm pressure regulators valves are available in various configurations and versions for usage in (cleanroom) utility and equipment manufacturing. The SS316L(VAR) pressure regulators have a polished internal surface finish, to minimize the forming of particles.

They are assembled and tested in a cleanroom environment.The valves are available with manual actuation for high and low pressures. The pressure regulators can be provided in 2/3/4/5 or 6 port configurations with the associated 1/4" face seal connections.

一般信息

cv-calculator

CV計算器

Specials

Info

Please contact us for more information about the special versions.

cv-calculator

CV計算器

Specials

Info

Please contact us for more information about the special versions.

技術規格

Article

92000928

Header [Brand]

UHP/HP Diaphragm Pressure Regulator

Manufacturer

Rotarex - Selfa

Manufacturer code

SIR100S 2V1 I/K 7b A/B:B3/8

Material body

SS 316L

Material handle

Extruded plastic

Material seat

PCTFE (Kel-F)

Material bonnet

Brass nickel plated

Material poppet

SS 316L

Material diaphragm

Hastelloy®

Inlet pressure

50 bar

Outlet pressure

7 bar

He leak rate

Up to 10^-9 mbar · l/s

Flow coefficient

0,2 Cv

Temperature range

-20 °C to 65 °C

Valve Actuation

Manually

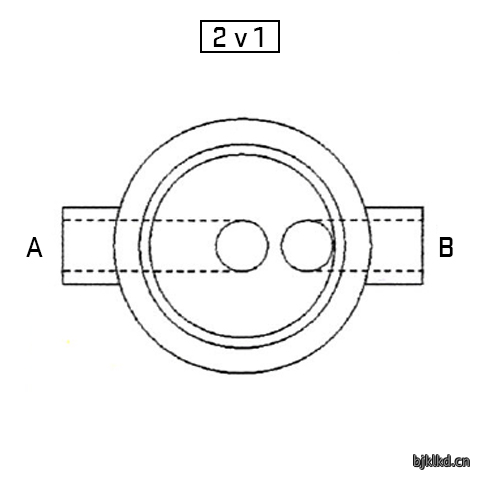

Port configurations

2 ports in line

Connection type

Buttweld/Buttweld/Buttweld

Polishing

Mechanical polishing

Surface finish

<0,4µm Ra

增值税常規税率

21%

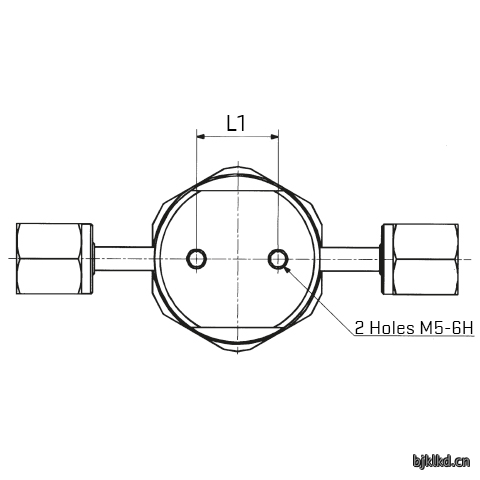

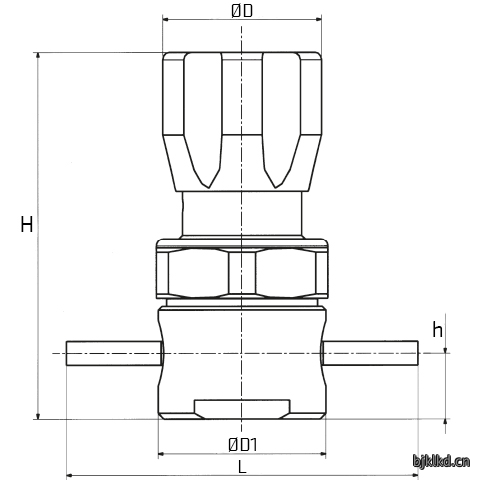

尺寸

Buttweld 3/8

Ø D

44,5 mm

Ø D1

45 mm

94 mm

22,3 mm

99 mm

17,5 mm

備注

Remarks

Images shown can slightly deviate from the part supplied depending on the actual configuration/options.
