CDA Catalyst Purifier FSM1/4 Model 200PF
物料號 94040039
CDA Catalyst Purifier FSM1/4 Model 200PF
物料號 94040039
可以迅速提供給已注册用(yong)戶
MicroTorr purifiers are the most complete and reliable solution for point-of-use (POU) gas purification. These purifiers give an uncompromising consistency in the quality of your process, provide a low pressure drop and guarantee a long life.
Applicaties
- Weld gas/purge gas
- Pharmaceutical production
- Semiconductor process equipment
- Analytical equipment
- Annealing cover gas
- LED manufacturing
- Flat panel display production
- Solar and energy
- Other emerging technologies
Downloads
Point of use purifiers datasheet2022年9月9日, 09:57 / 508.31 kB
Point of use purifiers brochure2022年9月9日, 09:57 / 1.43 MB
Applicaties
- Weld gas/purge gas
- Pharmaceutical production
- Semiconductor process equipment
- Analytical equipment
- Annealing cover gas
- LED manufacturing
- Flat panel display production
- Solar and energy
- Other emerging technologies
Downloads
Point of use purifiers datasheet2022年9月9日, 09:57 / 508.31 kB
Point of use purifiers brochure2022年9月9日, 09:57 / 1.43 MB
Article
94040039
Header [Brand]
Purifier UHP
Description
CDA Catalyst Purifier FSM1/4 Model 200PF
Vessel construction (material)
SS 316L
Gas(es) purified
Carbon filtered CDA
Impurities removed
Total Hydro Carbons inc. CH4 <1ppb
Regenerable
No regeneration required
Max. operating pressure
17 bar
Leak rating
10-9 mbar · l/s
Max. temperature
Max. 65 °C
Maximum Flow
14 SLPM
Polishing
Electro polishing
Surface finish
<10 µm Ra
Fittings
Face seal male 1/4
0,003um particle filtration:
yes
Adds to gas
10ppb CO2
增值税常規税率
21%

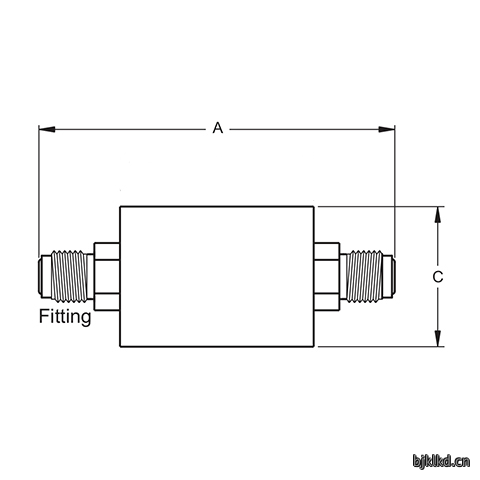

C
38 mm
A
122 mm
Remarks
The purifier will work indefinitely without regeneration unless poisoned by: amines, sulfides, thiols, lead or certain metal oxides.
